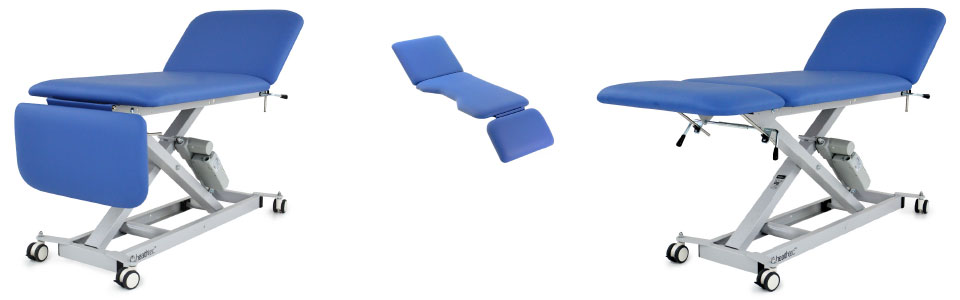

LynX Ultrasound Table

Designed for the Ultrasound Imaging & Diagnostic Clinics this table provides a comfortable working environment for both the sonographer & the patient.

It’s small footprint and unique design means that it can be used in even the smallest of ultrsound rooms.

The low minimum height provides excellect access for patients with limited mobility or for wheelchair tranfers, while the working height can easily be adjusted to assist with patient positioning and reduce fatigue on the sonographer or practicioner.

*Also available with ultrasound cutout if required

To contact Electrical Table Solutions staff please call our free number 1800 677 896 or contact us and we can discuss a solution for your requirements.

Download Brochure – LynX Ultrasound Table

Specifications

Maximum Working Load400kg (Stationary)
Maximum Lifting Capacity250kg (Moving)
Minimum Working Height450mm
Maximum Working Height950mm
Table Width610mm
Table Length1840mm
ControllerSingle Footswitch
Base/CastorX-Frame w/independenlty lockable castors 360º rotation
BackrestManually Adjustable +70º
Leg SectionManually Adjustable -90º to +30º

Features

  • Electric height adjustment wtih footswitch
  • X-Frame lift action minimises pinch and crush points
  • Heavy duty individually lockable castors
  • Durable powder coated rust resistant frame
  • High quality anti-microbial vinyl & CFC free foam
  • Australian designed & manufactured
  • 5 year warranty

Made in Australia
