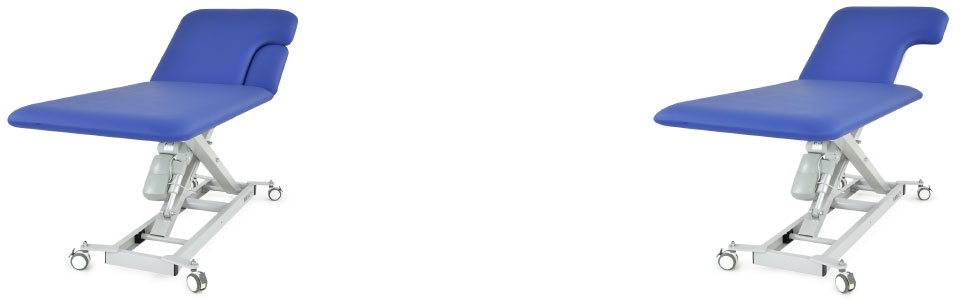

LynX Cardiology Table

Designed with special cut out for Cardiac Examination to allow the operator to get the patient perfectly positioned for ‘Echo’ style transducer techniques.

The LynX Cardiology Table offers a generous lifting capacity, electric operated backrest and removable cut out fill section allowing the table to be a full examination table when required.

The low minimum height allows for easy patient transfer while the maximum height can easily be adjusted reducing fatigue and back strain on the practitioner.

To contact Electrical Table Solutions staff please call our free number 1800 677 896 or contact us and we can discuss a solution for your requirements.

Download Brochure – LynX Cardiology Table

Specifications

Maximum Working Load400kg (stationary)
Maximum Lifting Capacity250kg (moving)
Minimum Working Height450mm
Maximum Working Height950mm
Table Width710mm
Table Length1840mm
ControllerDouble Footswitch
Base/CastorX-Frame w/independently lockable castors 360º rotation
BackrestElectrically Operated +70º
Cut-outIn Backrest Section of table with fill section

Features

  • Electric height adjustment with footswitch
  • X-Frame lift action minimuses pinch and crush points
  • Heavy duty individually lockable castors
  • Durable powder coated rust resistant frame
  • High quality anti-microbial vinyl & CFC free foam
  • Australian designed & manufactured
  • 5 year warranty

Made in Australia
