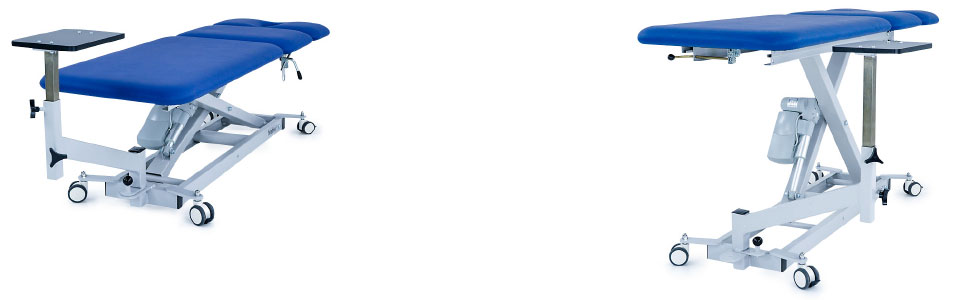

LynX Three Section Traction Table

Designed as a basic height adjustable Traction Table with the flexibility to be used as an extra Treatment Table.

Standard specifications include a lockable friction free pelvic section and swing away mounting traction bracket ready for use with many of the major brands of Traction units.

To contact Electrical Table Solutions staff please call our free number 1800 677 896 or contact us and we can discuss a solution for your requirements.

Download Brochure – LynX Three Section Traction Table

Specifications

Maximum Working Load 400kg -(Stationary)
Maximum Lifting Capacity 250kg (Moving)
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 610mm
Table Length 1840mm
Base/Castor X-Frame w/independently lockable castors 360º rotation
Head Section Manual Adjustment -90º to +40º with nose hole

Features

  • Electric height adjustment with footswitch
  • X-Frame lift action minimises pinch & crush points
  • Available with either adjustable feet or heavy duty lockable castors
  • Durable powder coated rust resistant frame
  • High quality anti-microbial vinyl & CFC free foam
  • 5 year warranty on frame & electrics
  • Australian designed & manufactured

Made in Australia
