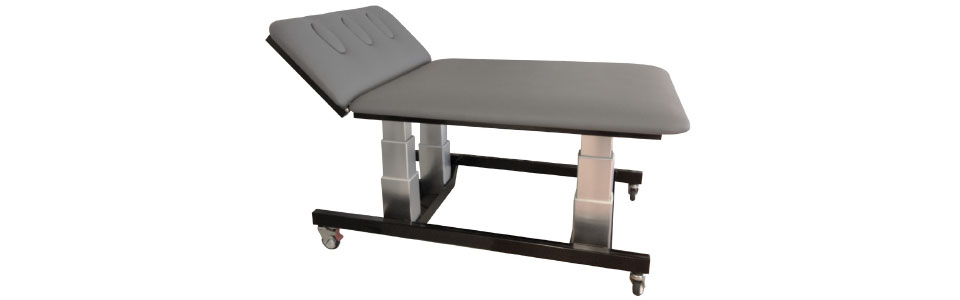

Hi-Capacity Bobath

The Ultimate in Neurological Plinths.  Designed for the unique requirements of Bariatric Patients.

Offering unparalleled levels of safety for the patient and practitioner the column design eliminates pinch and crush points ensuring safe and efficient care for both the patient and practitioner.

The open base design allows for patient lifter access even at it’s lowest height with no lateral movement during height operation and the fully electric powered backrest takes the strain out of positioning the bariatric patient.  A double footswitch is supplied as standard but an optional multi-function hand switch is also available upon request.

The extremely high safe working load allows for more than one practitioner to be assisting even the heaviest client when necessary.

To contact Electrical Table Solutions staff please call our free number 1800 677 896 or contact us and we can discuss a solution for your requirements.

Download Brochure – Hi-Capacity Bobath


Maximum Working Load 800kg (stationary)
Maximum Lifting Capacity 600kg (moving)
Minimum Working Height 500mm
Maximum Working Height 900mm
Table Width 1200mm
Table Length 2000mm
Controller Double Footswitch
Base/Castor Column base w/independently lockable castors 360º rotation
Head Section Electrically Adjustable +45º (-30º to +45º available) (Standard with 3 x nose hole & plugs)
Hoist Access patient lifter clearance


  • Electric height & backrest adjustment with footswitch
  • No pinch or crush points
  • Heavy duty hospital grade lockable castors
  • Durable powder coated rust resistant frame
  • High quality anti-microbial vinyl & CFC free foam
  • Australian designed & manufactured
  • 5 year warranty on frame & electrics

Made in Australia
